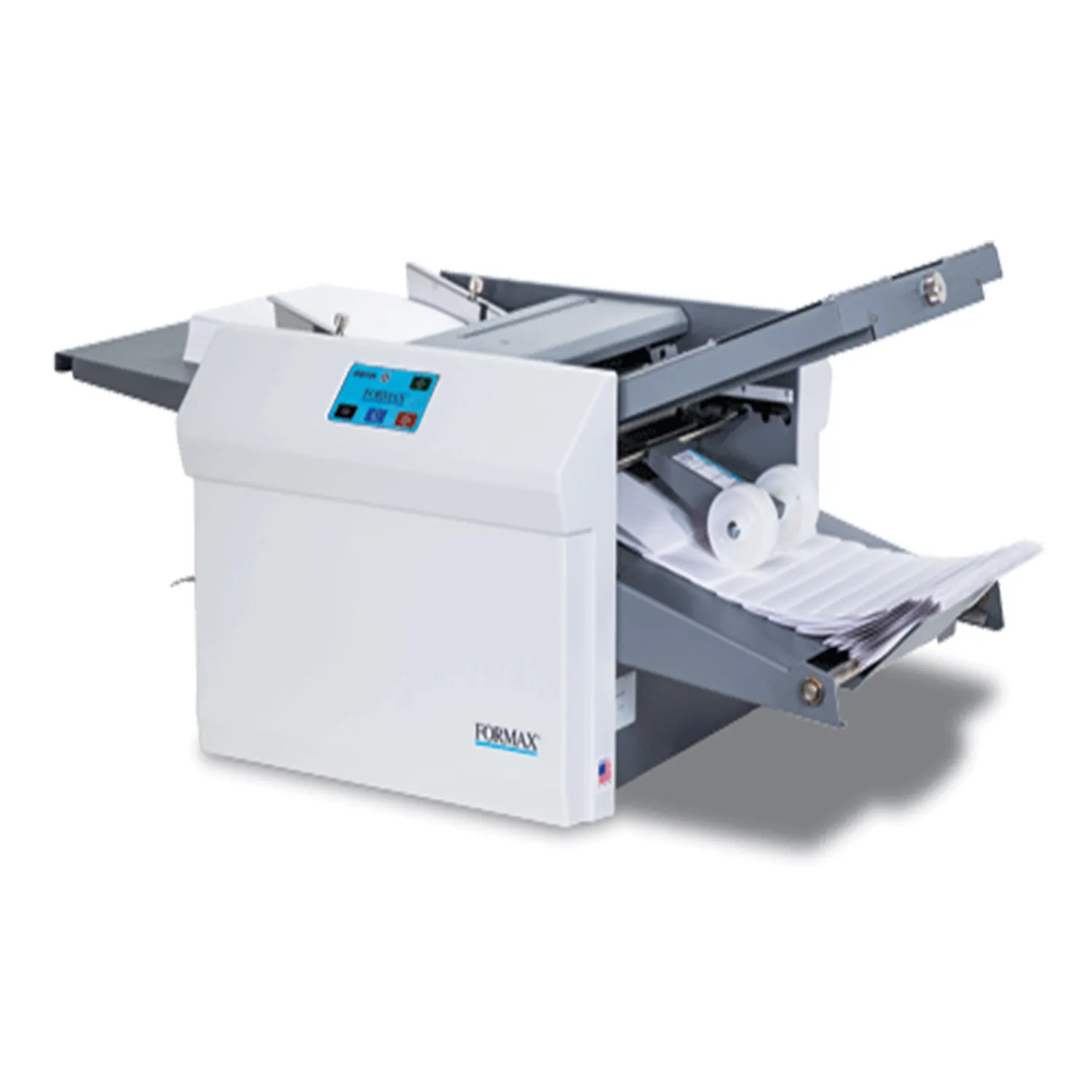

Formax introduces the FD 346 Paper Folder, which replaces the discontinued FD 342, featuring a brand-new color touchscreen for convenience and increased productivity. The touchscreen features internationally-recognized symbols in place of text, making it quick and easy for anyone to use with little to no training. The FD 346 is a fast and dependable solution for a variety of applications, folding up to 15,500 sheets per hour, in sizes up to 12" x 18". Simply load up to 500 sheets in the hopper, select the fold, and press start. Once the job is finished, the patented telescoping conveyor system holds up to 500 finished pieces. For easy batch processing, users can select the Formax AutoBatch program. Simply input a specific number of sets, sheets per set and delay between sets, and the FD 346 will take care of the rest. Six popular folds are clearly marked on the fold plates, for quick and easy set-up and operation with fine-tuning knobs for precise adjustments. The optional multi-sheet feeder allows users to fold up to 4 stapled or unstapled sheets at once through a dedicated feed system. Forget the days of hand-folding documents, and let the new Formax FD 346 Paper Folder do all the hard work, while you get more important things done.

Product Details

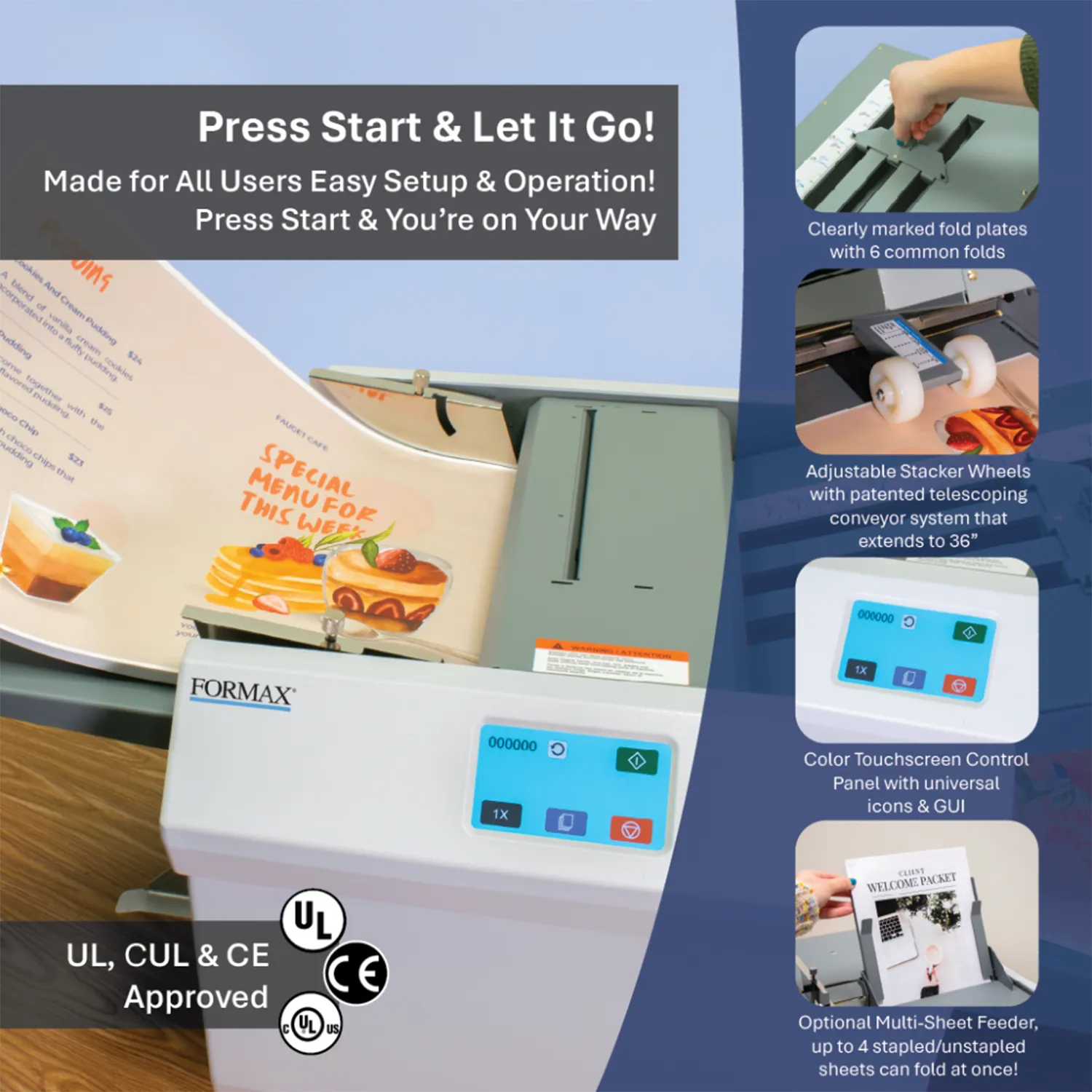

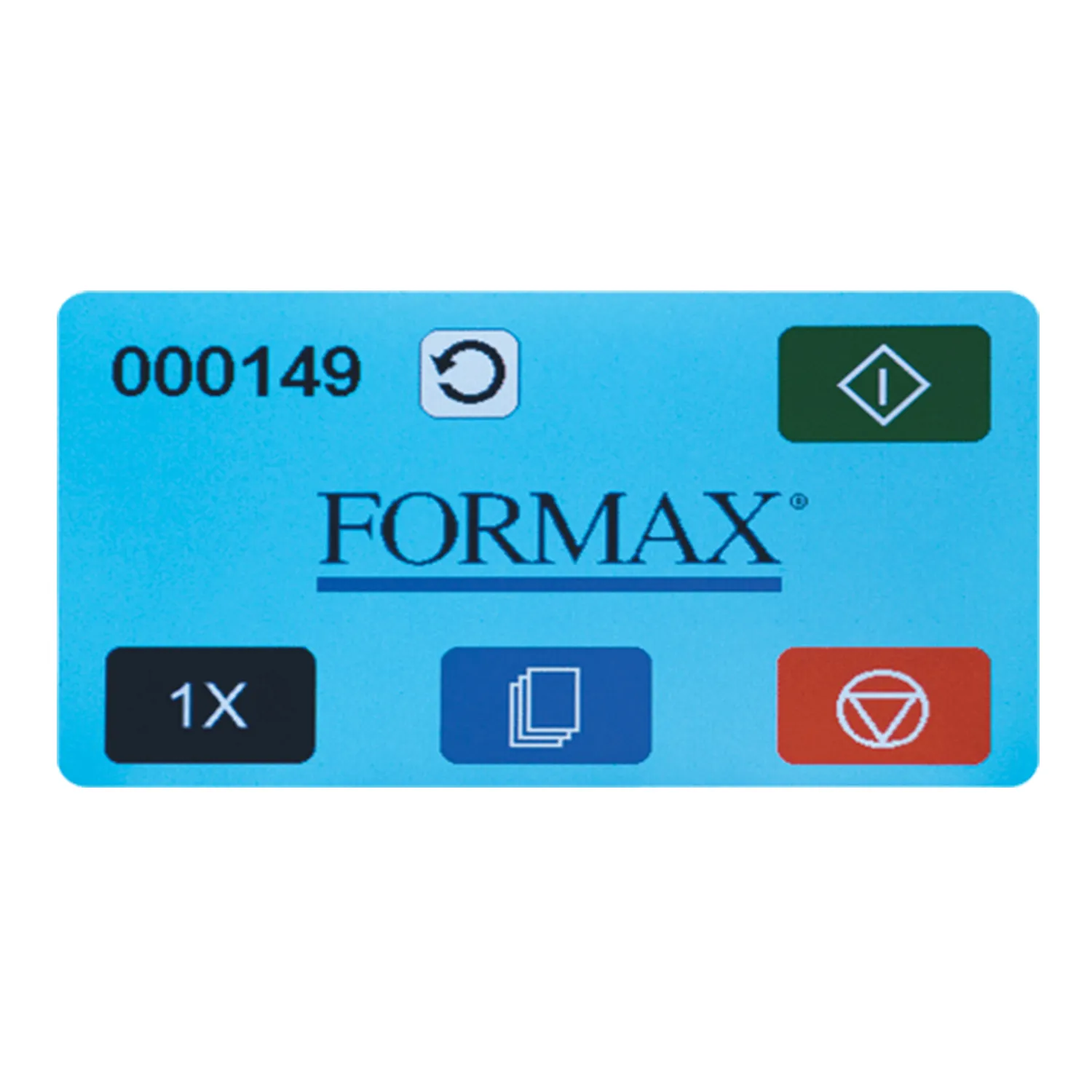

• Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.
• Fast Processing: Large jobs are processed quickly at speeds of up to 15,500 pieces per hour.

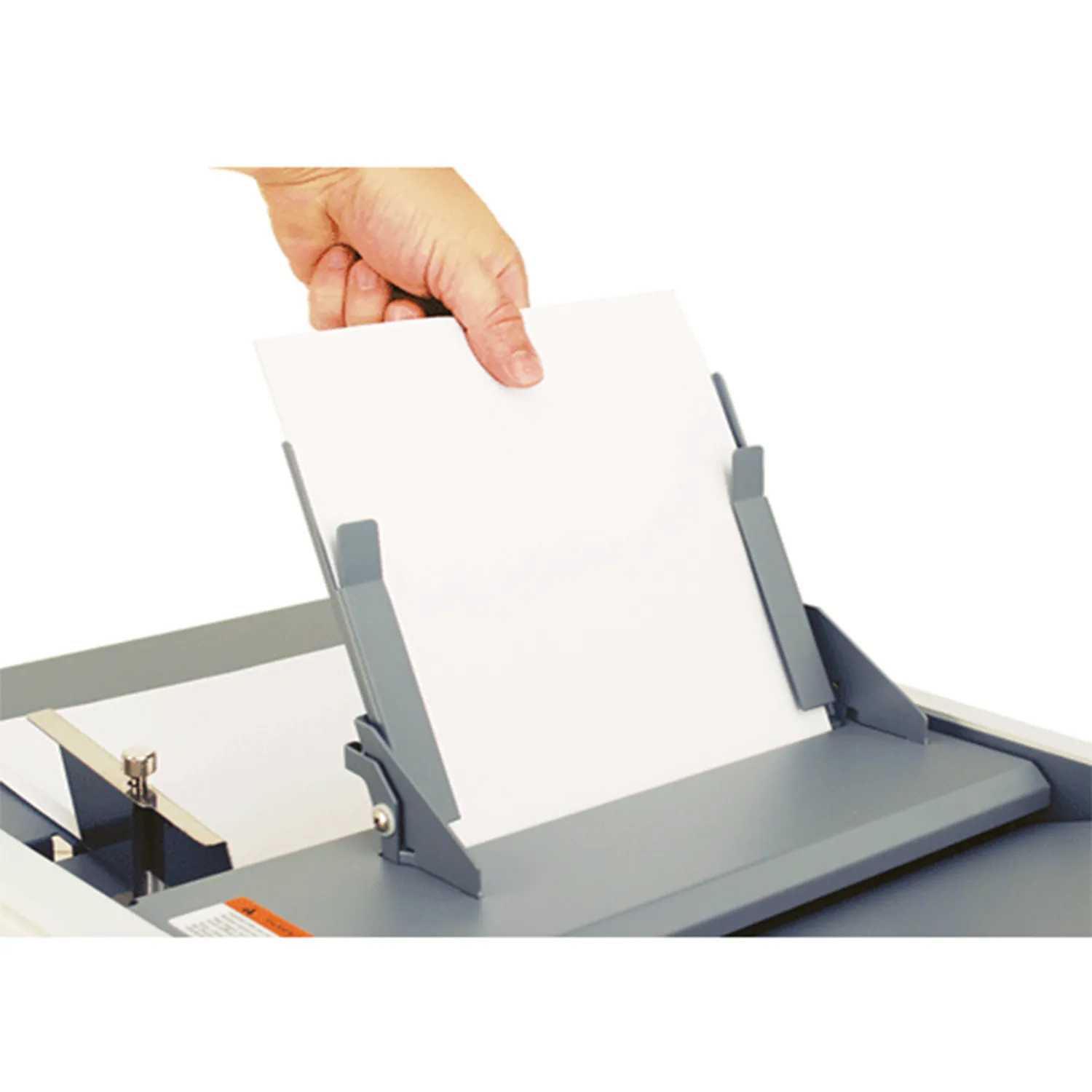

• Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required.

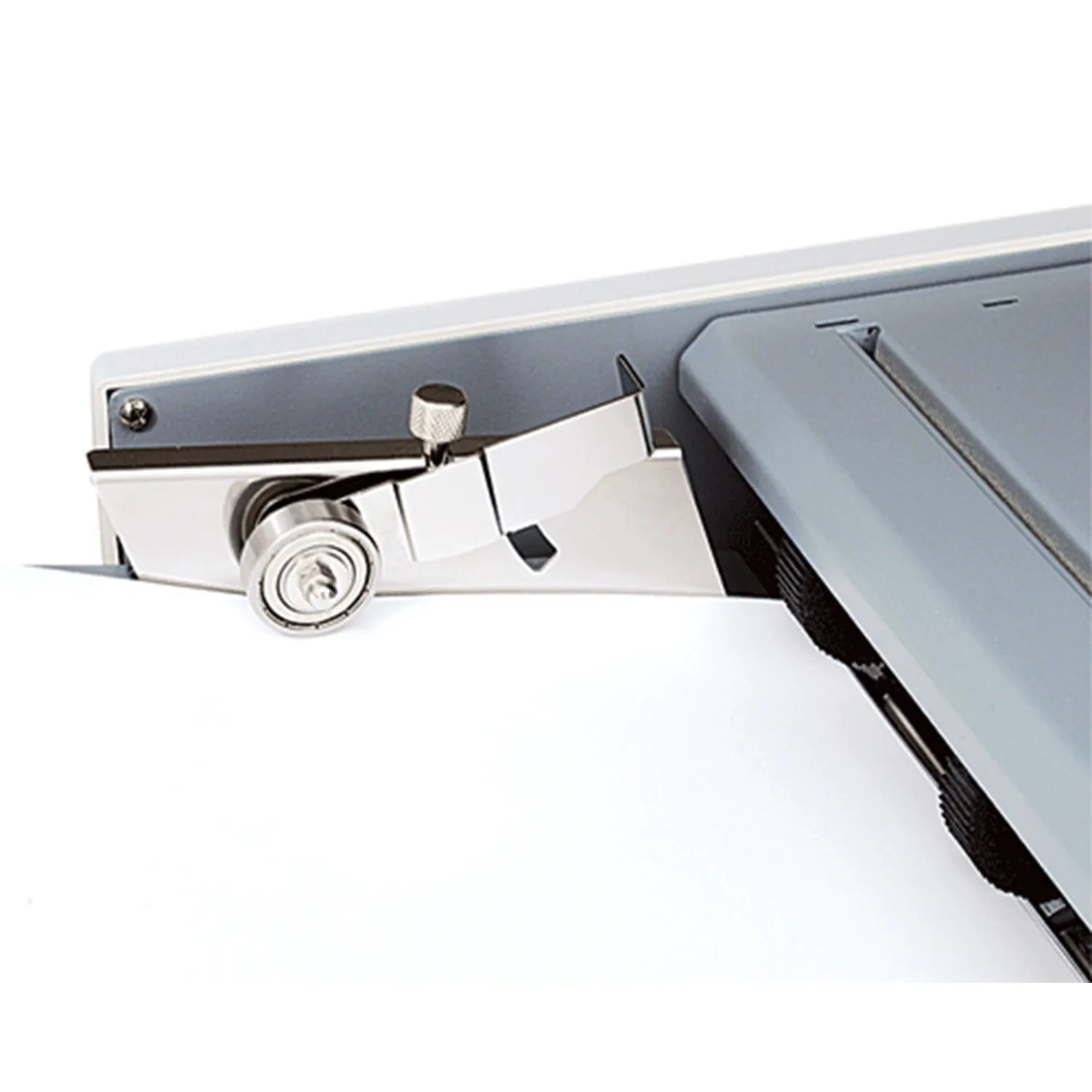

• Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types.
• Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces.
• 6-Digit Resettable & 8-Digit Life Counters: Provide maximum audit control.

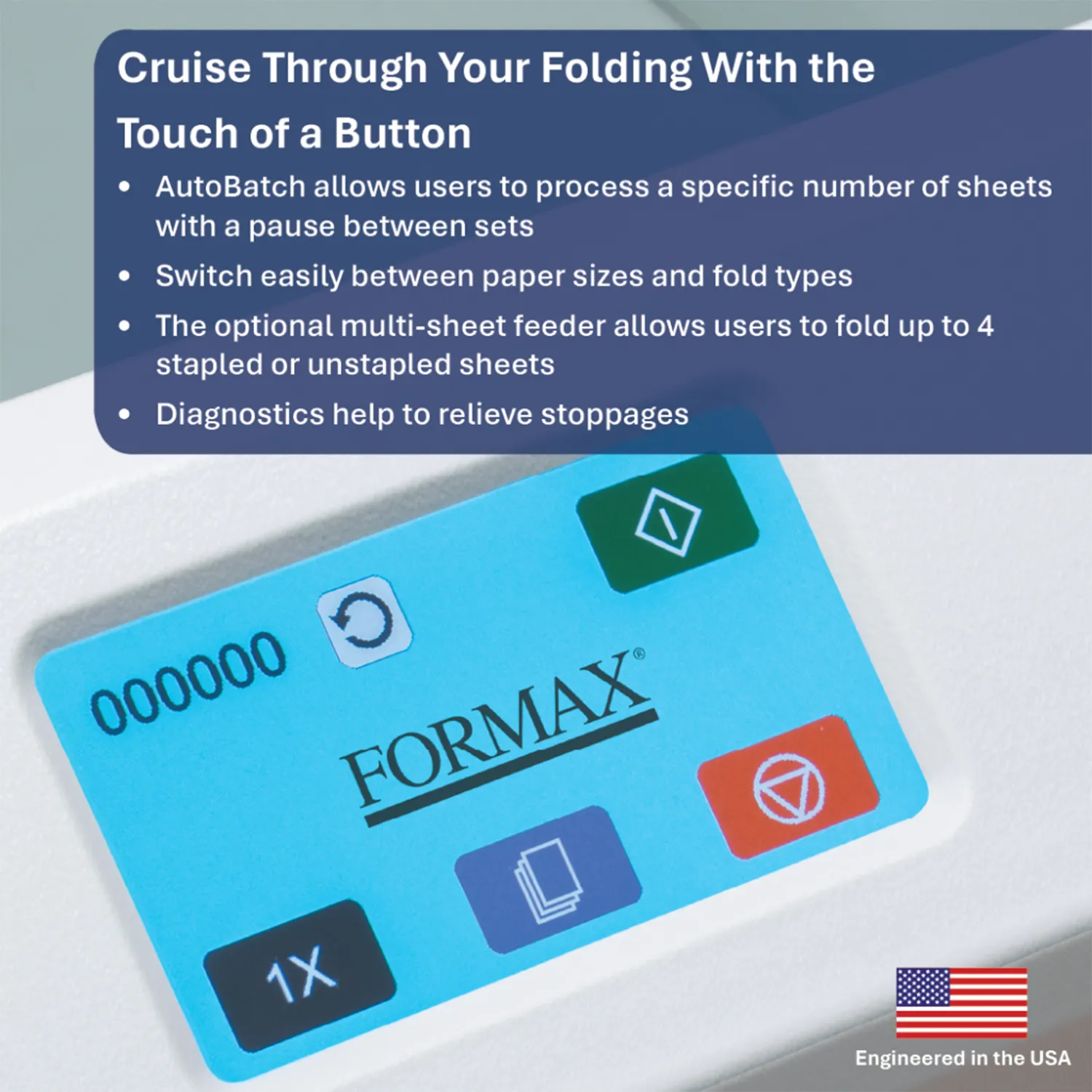

• AutoBatch Setting: Programmable to process pre-set number of sheets and stops.

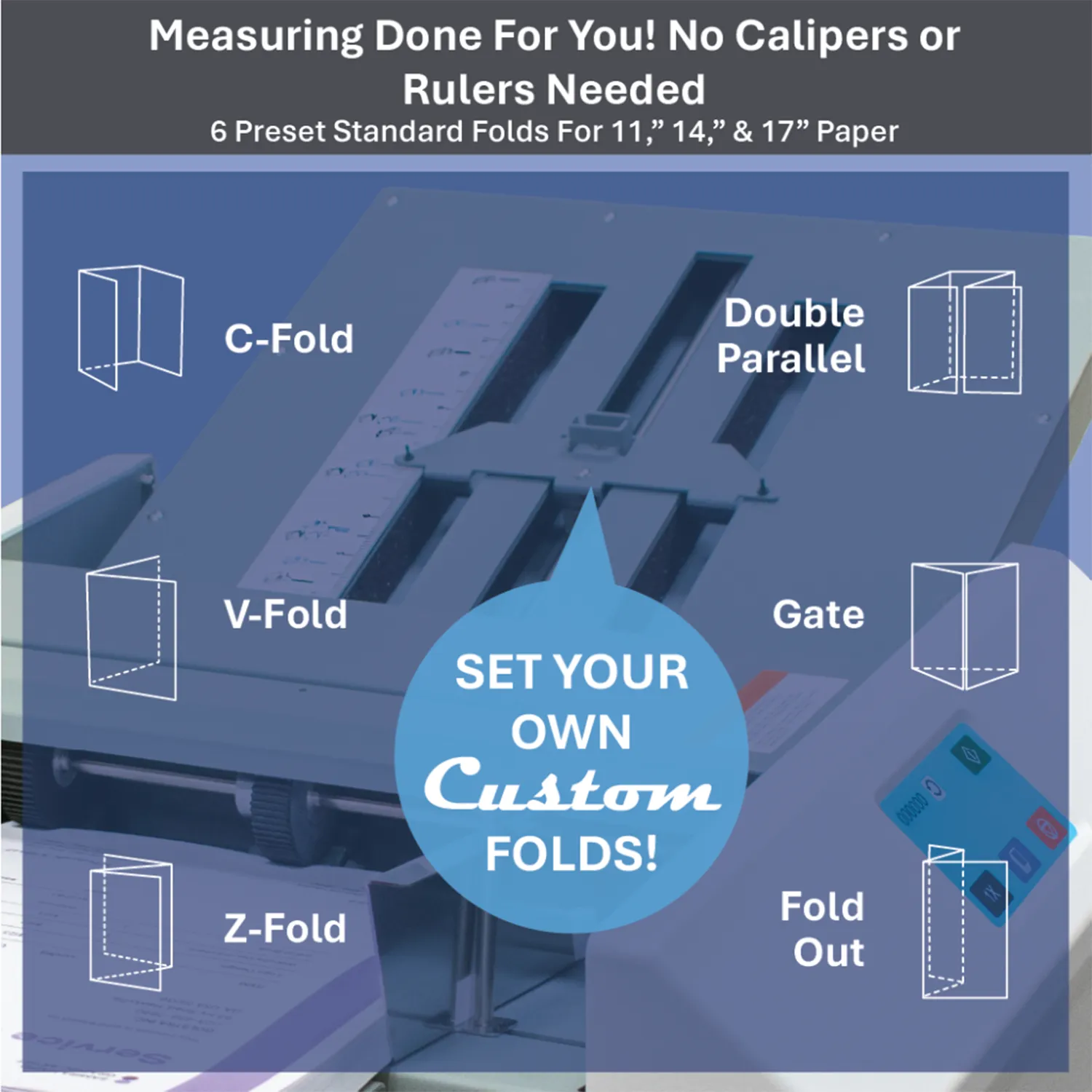

• Pre-Marked for Six Standard Folds in Common Paper Sizes: Fold plates are clearly marked for 6 popular fold types in letter, legal and ledger paper sizes.
• Custom Folds: Fold plates can be easily adjusted for custom fold setup.
• Optional Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at the same time.
• Fine-Tune Adjustment: Precisely sets fold stops for crisp, accurate folds.
• Cross-Folding: A guide is included for two pass operation.
• Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers.
• Quick Release Fold Stops: Fold settings are quickly and easily adjusted with the quick release system.
• Removable Roller Cover: Easily removed for improved access to fold rollers and exit area.
• Self Centering Side Guides: Guides move in and out together to help ensure documents are fed squarely.
• Paper Out & Cover Open Sensors: If the paper is out or the cover is open the folder will not run.
• Fault Detection: Folder automatically stops when a fault is detected, an LED lights up on the control panel to indicate the possible fault location.
