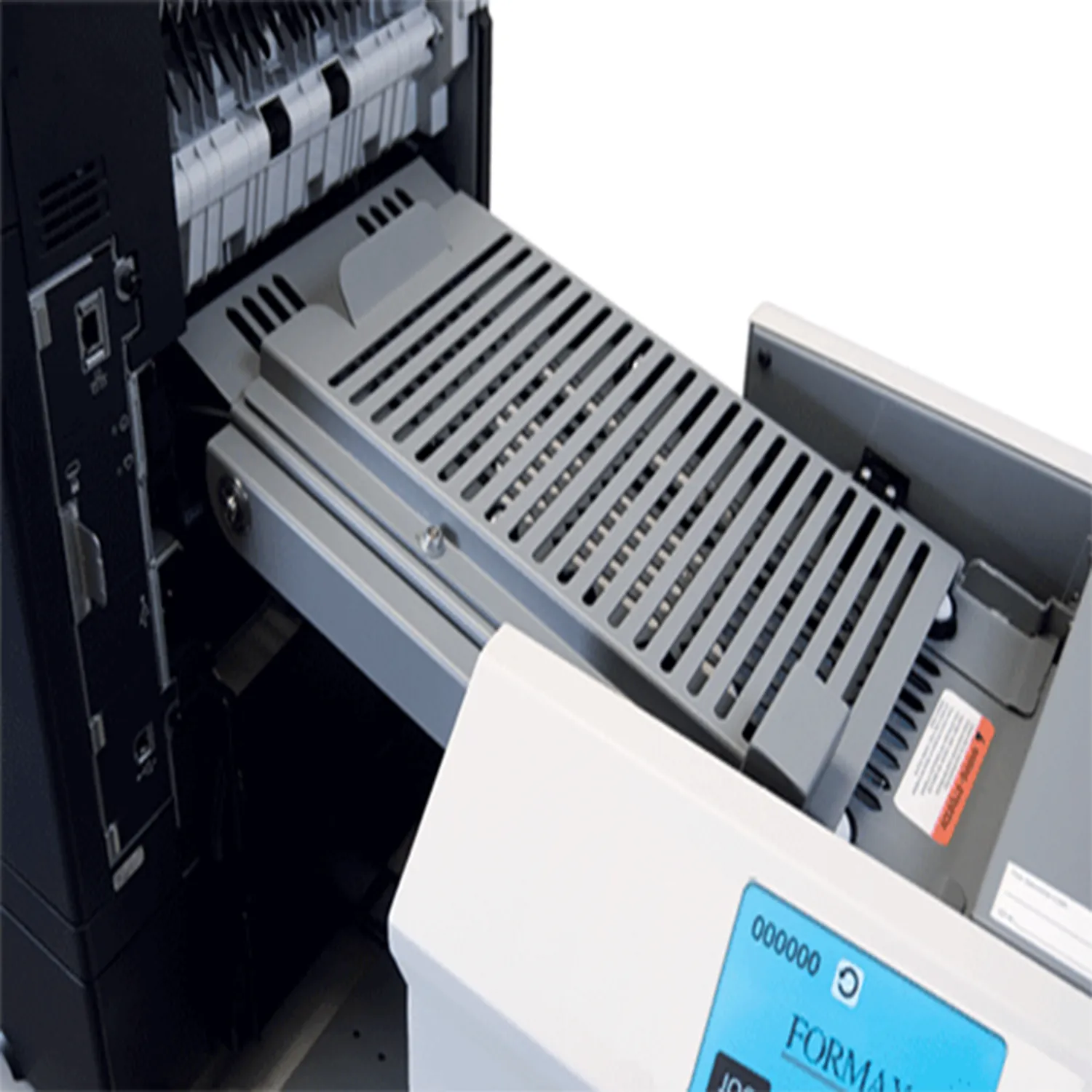

The Formax AutoSeal FD 2006IL allows operators to print, fold and seal pressure-sensitive one-piece mailers in one step, reducing processing time while increasing document security. The IL System works in-line with model-specific MICR and non-MICR desktop laser printers. The fully-enclosed paper path is designed to conceal confidential documents, including PIN notices, checks, school grade reports and health care information. Standard features include a color touchscreen control panel with internationally-recognized symbols in place of text, fold plates that are easy to set and adjust, and drop-in top feed system, all in a compact and sleek desktop design. Fold plates are pre-marked for standard folds for 11" and 14" form sizes, and can be easily adjusted for custom folds. Fold types include Z, C, Uneven Z and C, Half and custom folds. The Formax AutoSeal FD 2006IL Print-Fold-Seal In-Line System is proudly built in the USA and is ideal for companies processing sensitive documents or those looking for a mid-volume in-line solution for processing pressure seal forms.

Product Details

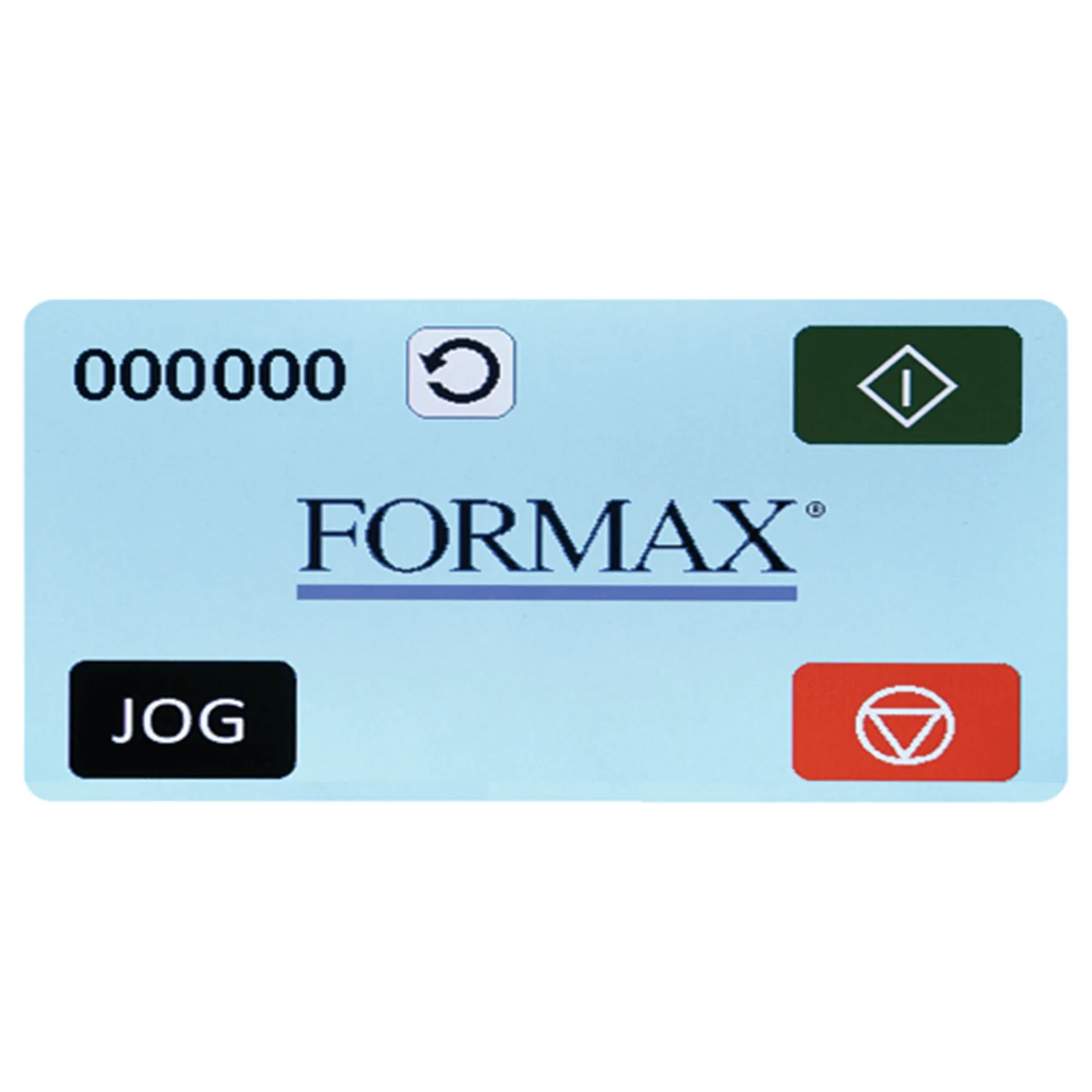

• Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.
• Print, Fold and Seal: One-step process eliminates excess document handling.
• Document Security: Enclosed paper path from printer to pressure sealer ensures security. Ideal for PIN notices or other confidential applications.
• Form Capabilities: Processes forms up to 14" in length.
• Printer Compatibility: Designed to work with a variety of printers. See specifications below.
• Installation: Easy to install, no software required.
• Alignment Base: Special alignment base holds the printer and pressure sealer securely and slides apart for easy access to paper path and fold plates.
• Fold Types: Z, C, Half and custom folds.
• Fault Detector: Detects double feeding and any faults.
• Dedicated Use: Designed for in-line use only.
• Six-Digit Resettable Counter.
• Made in the USA.
• Options:
  • P2006IL: Cost-saving package that includes FD 2006IL System, 18" conveyor and 2 cabinets.
  • 18" Conveyor w/Photo Eye: Allows for neat and sequential stacking of processed forms.
  • Reverse Stacking Conveyor: Allows for A-to-Z input and A-to-Z output.
  • Locking Cabinets: Fully enclosed for storage (2 cabinets required).
